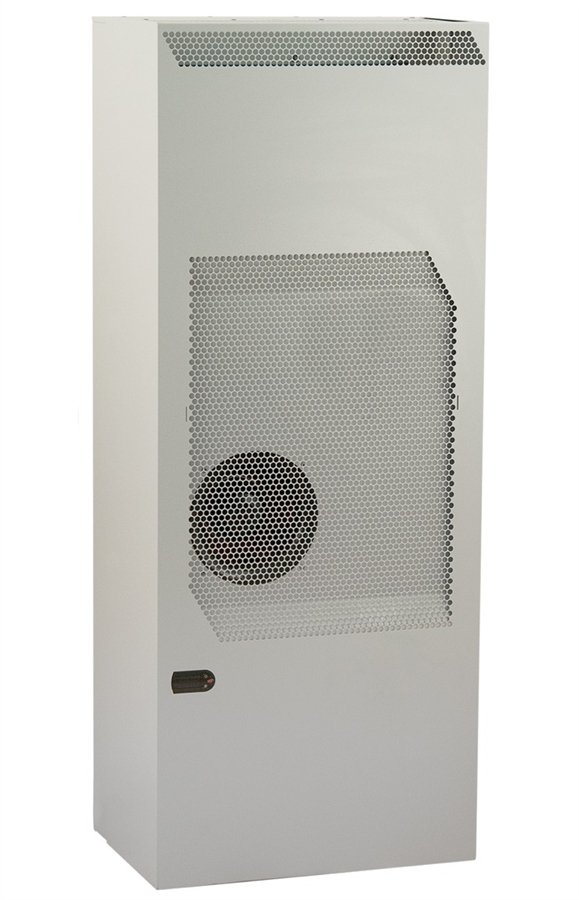

The Seifert 43302001 KG 4330-400V ComPact control cabinet air conditioner has a rated voltage of 400-460V. It has an L35L35 cooling capacity of 10240 BTU/hr. The L35L35 power consumption is 1.34 kW at 400 V and 1.7 kW at 460 V, with a max. power consumption of 1.66 kW at 400 V and 2.10 kW at 460 V. The housing is gray powder coated mild steel and the unit is externally mounted.
- Almost no maintenance needed
- Surface treated condenser
- High fin separation
- Simple operation
- Reliable performance
- Features display to indicate status
- Touchpad controls settings adjustments
- Standardized components
- Needs no filters
- Made for indoor applications
Specifications
- Color- RAL 7035 Gray
- Housing Material- Powder Coated Mild Steel
- Cooling Capacity L35L35- 10240 Btu/hr
- Cooling Capacity L35L50- 8,160 Btu/hr @ 50 Hz 3~, 8,550 Btu/hr @ 60 Hz 3~
- Compressor- Rotary Piston Compressor
- Refrigerant- R134a / 1430
- Refrigerant Charge- 755 g / 26.6 oz
- High / Low Pressure- 24 / 6 bar, 348 / 88 psig
- Operating Temperature Range- 50 F - 131 F
- Max. Air Volume Flow- Ambient air circuit: 441 cfm, Cabinet air circuit: 506 cfm
- Mounting- External
- Dimensions- 48.43" Height x 19.69" Width x 13.39" Depth
- Cut-out Dimensions- 44.48" x 16.92"
- Rated Voltage- 380-415 V 50 Hz 3~, 400V-460V 60Hz 3~
- Rated Current L35L35- 2.1 A @ 400 V, 2.3 A @ 460 V
- Starting Current- 7.6 A @ 400 V, 8.1 A @ 460 V
- Max Current- 3.3 A @ 400 V, 3.5 A @ 460 V
- Power Consumption L35L35- 1.34 kW @ 400 V, 1.7 kW @ 460 V
- Max Power Consumption- 1.66 kW @ 400 V, 2.10 kW @ 460 V
- Fuse Rating- 3 x 6 A (T)
- Connection- Connection Terminal Block
- Protection Category- IP 54
- Approvals- CE, C UR US, C UL US
- Warranty- 2 Year Manufacturer's Warranty

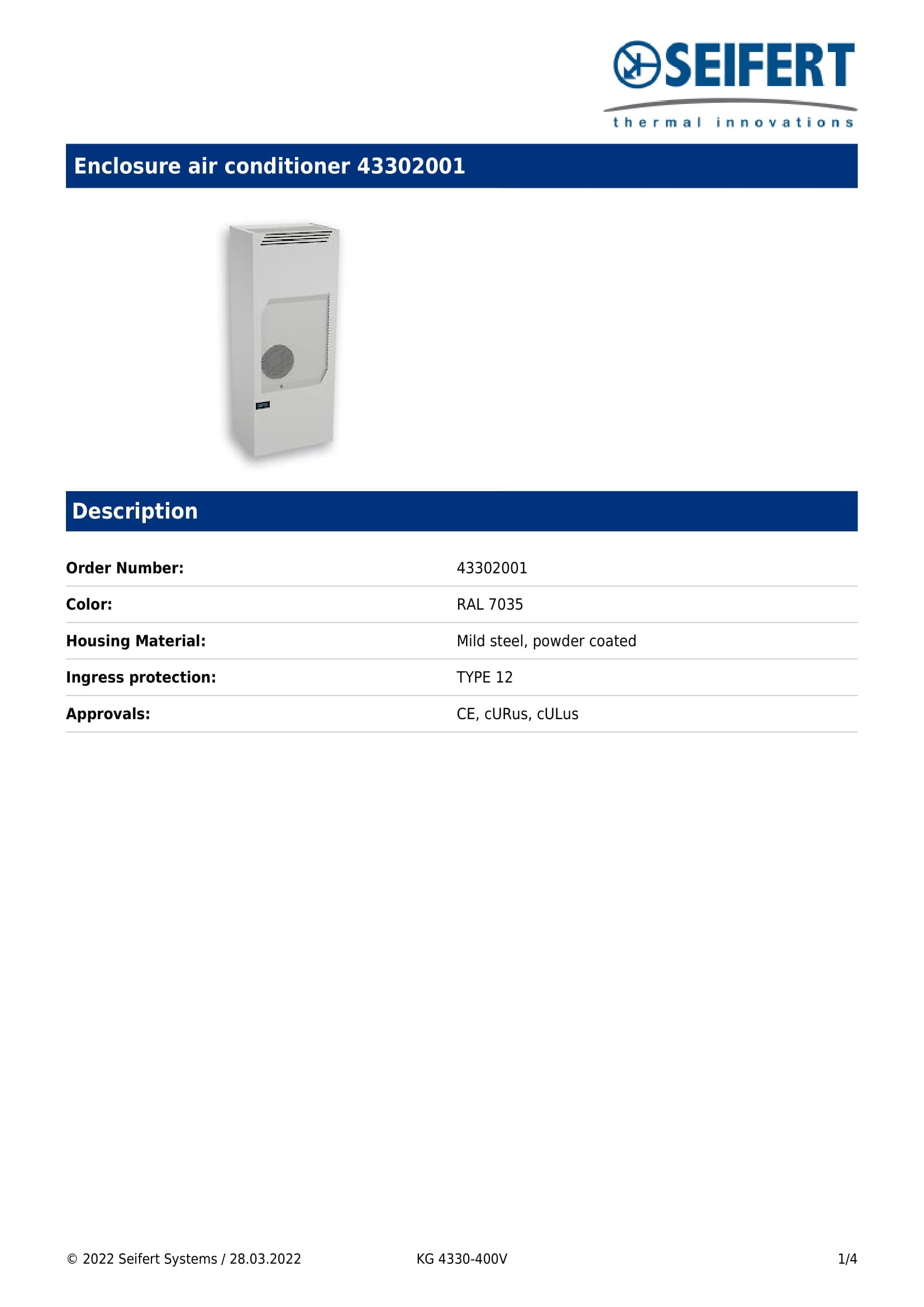

Seifert KG 4330 Air Conditioner Downloads
