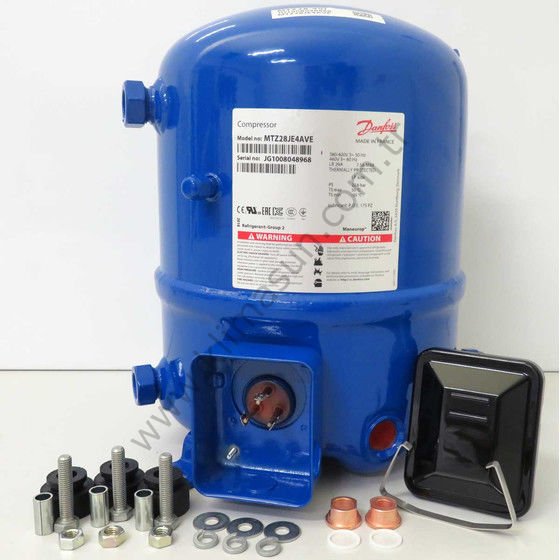

Compressor Maneurop Danfoss MTZ28 JE4, 380-400V/3/50Hz, swept volume - discharge 48.06 cm3 - 8.4 m3/h @ 2900 rpm, cylinders: 1, oil type / charge: POE - 160PZ / 0.95 l, maximum starts per hour 12, maximum charge limit 2.5 kg approved refrigerants: R404A, R507A, R134a, R407C, connections: suction 1 inch - 1/2 inch ODF, discharge 1 inch - 3/8 inch ODF,diameters (o/h): 224/333 mm, weight 23 kg
Refrigerant:R404A R407C R407A R407F R449a R448A R507a R452A R134a
Power range(W):2 - 3 kW
Performance range (C):-30 C to +10 C
Connecting size:1" x 3/8" ODF
Working area:MBP
Design type:Hermetic
Model series:MTZ
Power supply:400 V
Oil type:POE
Article condition:New
Info:Oil filled
Shipping weight:25,00 kg
Dimensions ( Length × Width × Height ):22,40 × 22,40 × 33,30 cm
customs tariff number:84143081
Cooling capacity condition:T0 -15 C, Tk +40 C
Manufacturer:Maneurop Danfoss
Model:MTZ28JE4V
Modelname:MTZ28JE4AVE
Stroke volume (cm3):48,06
Cooling capacity (W):2570
Note:Maximum refrigerant charge 2.5 kg, Maximum number of starts per hour 12
Conveying and suction volume (m3):8,4
Equipment:1-Cylinder
Oil quantity (l):0,95
Compressor type:Piston
Suction (inch):1 x 1/2 ODF
Discharge (inch):1 x 3/8 ODF
Power range:-30 C to +10 C
