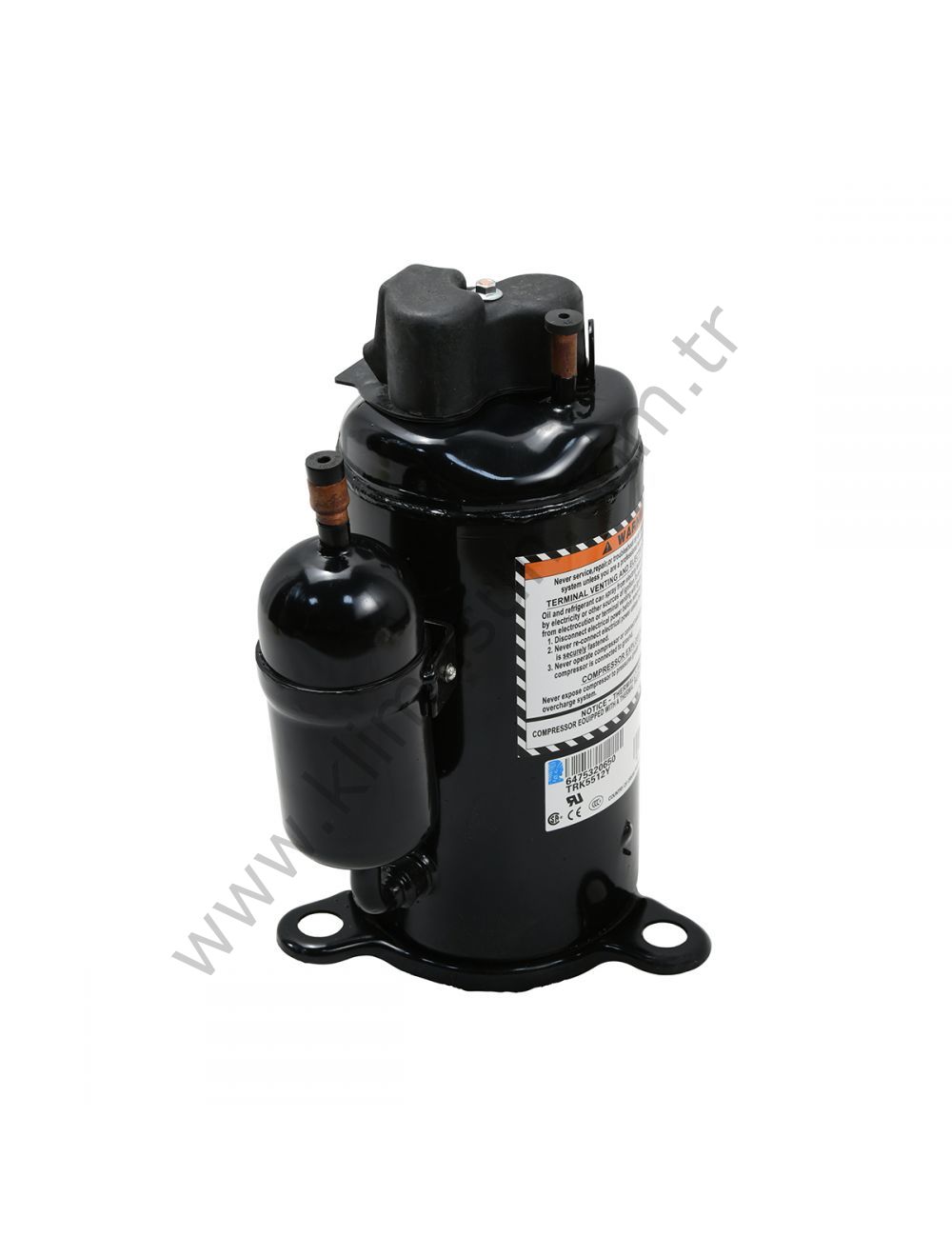

Type: Rotary Compressors
Application: HBP/AC - Air Conditioning
Voltage/Frequency: 460VAC-3PH 60Hz 380-420VAC-3PH 50Hz
General
Evaporating Temp. Range: -15 to 15 Celsius degrees
Motor Torque: Low Start Torque (LST)
Compressor Cooling: Fan
Mechanical
Weight: 11
Weight Unit of Measure: KG
Displacement (cc): 24.4
Oil Type: Polyvinylether
Viscosity (cSt): 68
Oil Charge (cc): 444
Electrical
Voltage Range (50 Hz): 342-462
Voltage Range (60 Hz): 396-506
Locked Rotor Amps (LRA): 16
Rated Load Amps (RLA 50 Hz): 2.2
Rated Load Amps (RLA 60 Hz): 2.3
Max. Continuous Current (MCC in Amps): 3.8
Motor Resistance (Ohm) - Main: 13.5
Motor Resistance (Ohm) - Start: 13.5
MotorType: 3PH
Overload Type: N/A
Relay Type: N/A
Application: HBP/AC - Air Conditioning
Voltage/Frequency: 460VAC-3PH 60Hz 380-420VAC-3PH 50Hz
General
Evaporating Temp. Range: -15 to 15 Celsius degrees
Motor Torque: Low Start Torque (LST)
Compressor Cooling: Fan
Mechanical
Weight: 11
Weight Unit of Measure: KG
Displacement (cc): 24.4
Oil Type: Polyvinylether
Viscosity (cSt): 68
Oil Charge (cc): 444
Electrical
Voltage Range (50 Hz): 342-462
Voltage Range (60 Hz): 396-506
Locked Rotor Amps (LRA): 16
Rated Load Amps (RLA 50 Hz): 2.2
Rated Load Amps (RLA 60 Hz): 2.3
Max. Continuous Current (MCC in Amps): 3.8
Motor Resistance (Ohm) - Main: 13.5
Motor Resistance (Ohm) - Start: 13.5
MotorType: 3PH
Overload Type: N/A
Relay Type: N/A
